Low Profile Linear LED Fixture

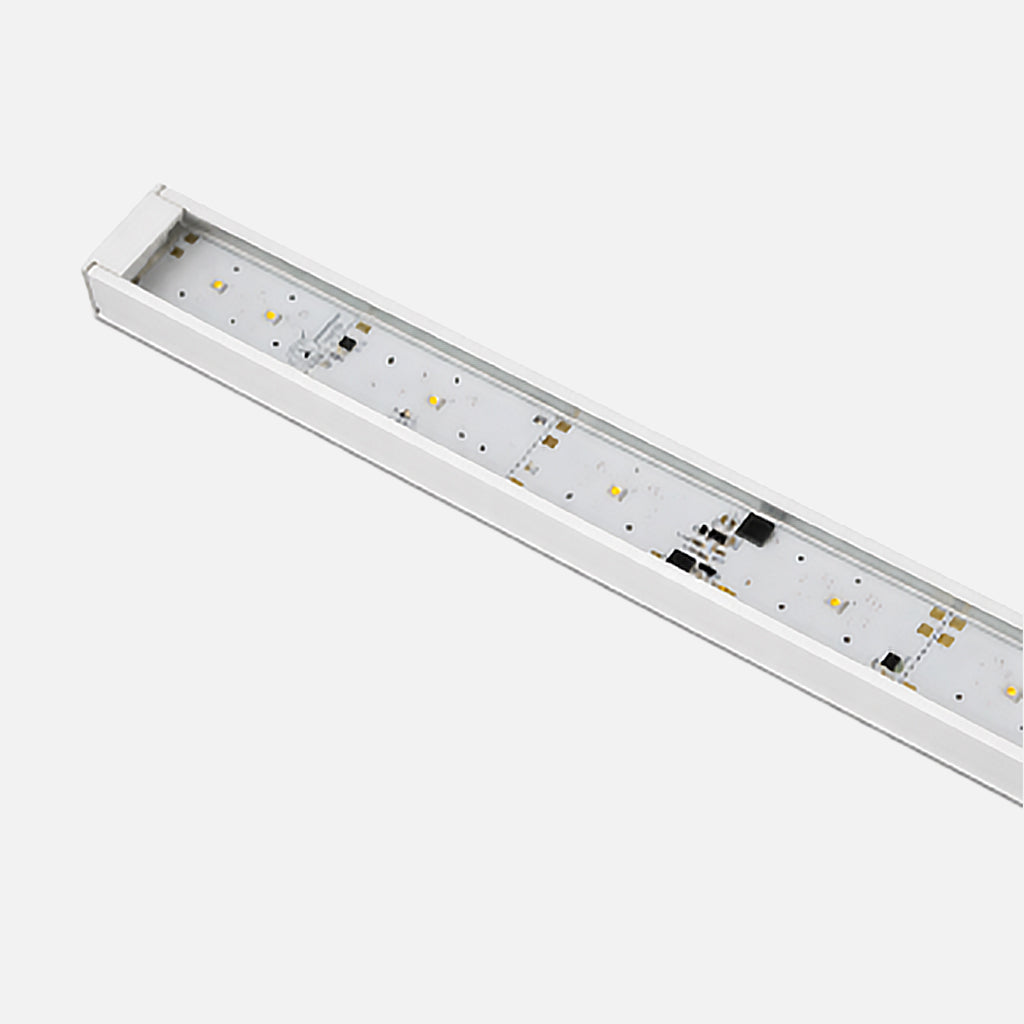

The LumaRail - VO linear LED light fixture has been designed to deliver even greater lumen output through a one-inch pitch light engine. This configuration makes it an optimum solution for general lighting when significant illumination is required from a low-profile footprint.
Constructed with a sturdy powder coated aluminum housing, the VO delivers excellent lumen output. Available in standard output solely, the VO includes onboard 0 – 10 VDC dimming with either fixed or articulating mounting options for maximum versatility. VO is offered with either a clear or frosted lens option. It can serve dry environments and has a damp option available when specified. This fixture is a versatile solution for numerous applications. It remains a staple for specifiers seeking to create a unique desired effect.
Features
- Made in America quality and craftsmanship
- Five CCTs and four colored LED standard options
- Customizable fixture lengths, CCT and CRI available
- Powder coated, low profile aluminum extrusion for seamless integration
- Fixed and articulating mounting options
- Daisy chain fixtures for longer runs and energize from a single driver
- Onboard 0 – 10VDC dimming circuitry
Downloads
Details
| Lumen Output | 700 to 1181 |
| CRI | 80 – 90+ |
| Beam Angle | 115° |
| Lens | Clear & Frosted |
| Dimmable | Yes |
| Onboard Dimming | Yes |
| Fixture Length | 6” min to 87” max |
| Incremental Length | 1" |
| Environmental | Dry (Damp Optional) |
