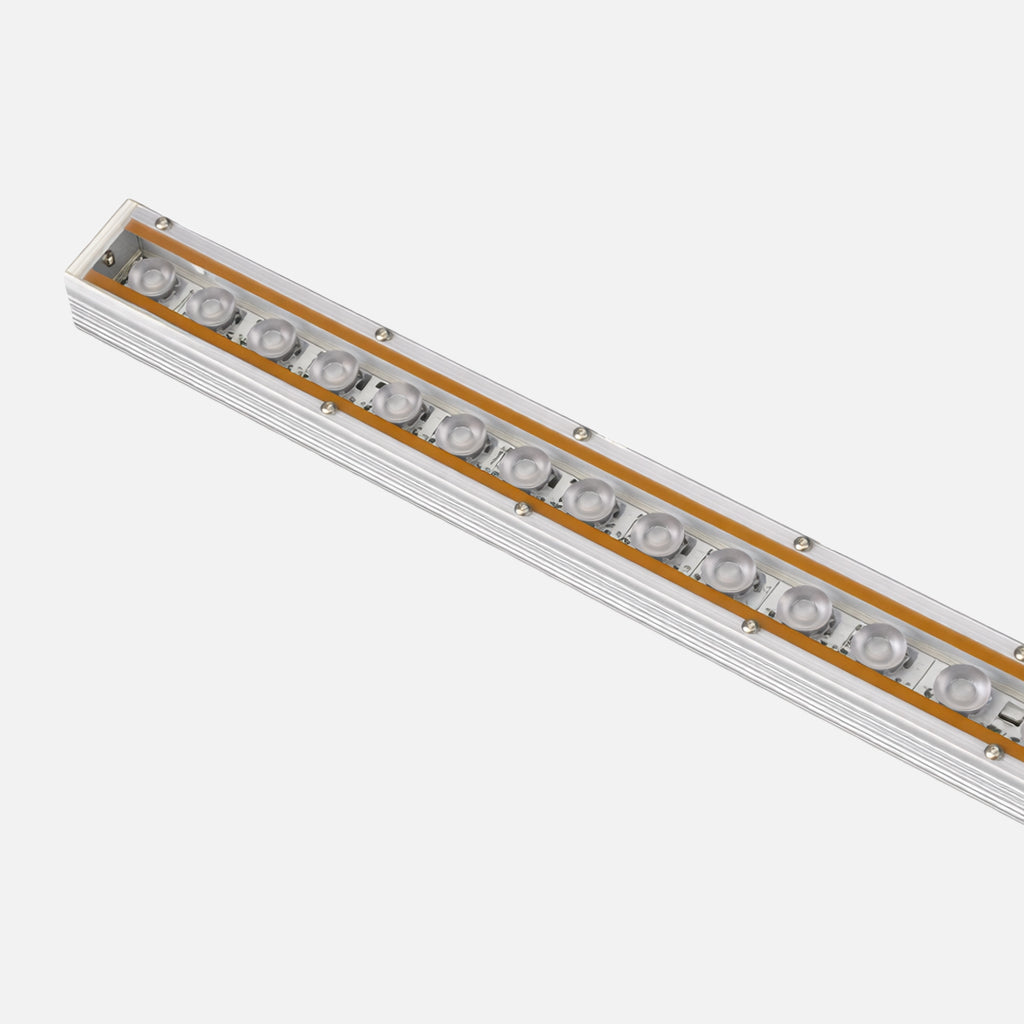

Linear LED Fixture with 1.2″ Pitch & Optic
Constructed using an industrial grade aluminum extrusion built to withstand the test of time, the Zuma - ZVfx is an ideal solution with a 1.2-inch pitch light engine that provides general illumination and pathway lighting for extreme environmental linear LED lighting applications. It is offered with either a standard or high output light engine configuration and delivers up to 909 lumens.
ZVfx is housed in a heavy duty extruded aluminum envelope and protected by a UV resistant polycarbonate lens. It’s available with several optical options to deliver the desired beam sculpting. It includes onboard 0 – 10 VDC dimming and the ability to be mounted in either an articulating or fixed position. ZVfx is available in one inch increments up to four feet in length. It can be configured either in series or parallel to a single driver.
Features
- Made in America quality and craftsmanship
- Standard or high output options
- UV stabilized polycarbonate lens
- 15°, 40° and 10×50° beam sculpting opions
- Five standard CCTs plus options for colored customization
- Daisy chain configurable wiring to a single driver
- Thermal monitoring and current control combine to maintain
light levels while guarding against overheating
Downloads
Details
| Lumen Output | 516 to 909< |
| CRI | 80 – 90+ |
| Beam Angle | 15° | 40° | 10 x 50° |
| Lens | Clear |
| Dimmable | Yes |
| Onboard Dimming | Yes |
| Fixture Length | 12” min to 48” max |
| Incremental Length | 1" |
| Environmental | Wet |
