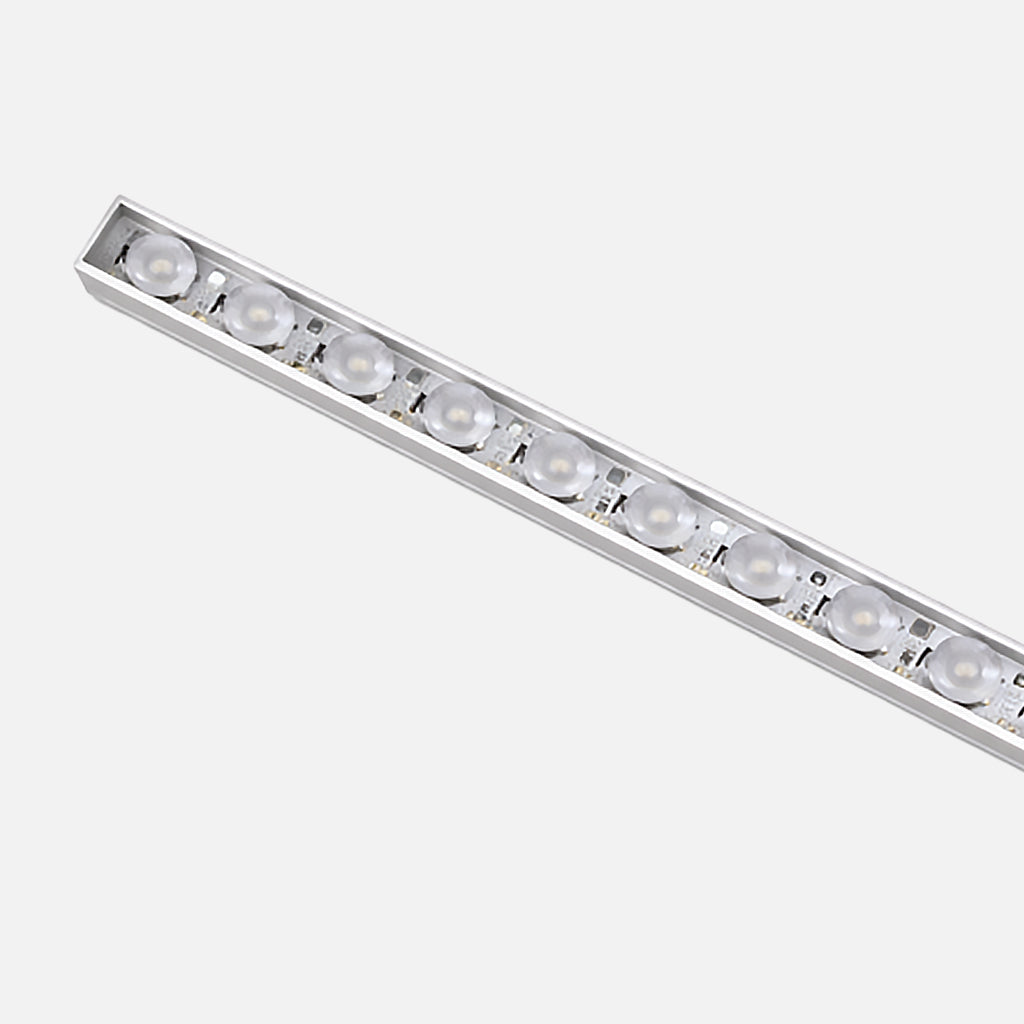

Linear LED Fixture with 1.2″ Pitch & Optic
Constructed of a rugged powder coated aluminum housing, the linear LED HiCfx fixtures utilizes industry leading optics to deliver superior lumen output in an attractive yet concealing envelope. Available with either standard and high output, the HiCfx includes onboard 0 – 10 VDC dimming and can be mounted in either a fixed or articulating position to deliver the desired lighting solution for nearly any linear application.
Serving dry environments, with a damp environment option available, the HiCfx has excellent light throwing characteristics capable of satisfying the demanding needs of most specifiers and architects.
Features
- Made in America quality and craftsmanship
- Five CCTs and four colored LED standard options
- Customizable fixture lengths, CCT and CRI available
- Powder coated, low profile aluminum extrusion for seamless integration
- Fixed and articulating mounting options
- Daisy chain fixtures for longer runs and energize from a single driver
- Multiple beam sculpting lens options
- Onboard 0 – 10VDC dimming circuitry
Downloads
Details
| Lumen Output | 595 to 1141 |
| CRI | 80 – 90+ |
| Beam Angle | 15° | 40° | 50 x 10° |
| Lens | Clear & Frosted |
| Dimmable | Yes |
| Onboard Dimming | Yes |
| Fixture Length | 6” min to 78” (SO) & 60" (HO) max |
| Incremental Length | 1" |
| Environmental | Dry (Damp Optional) |
