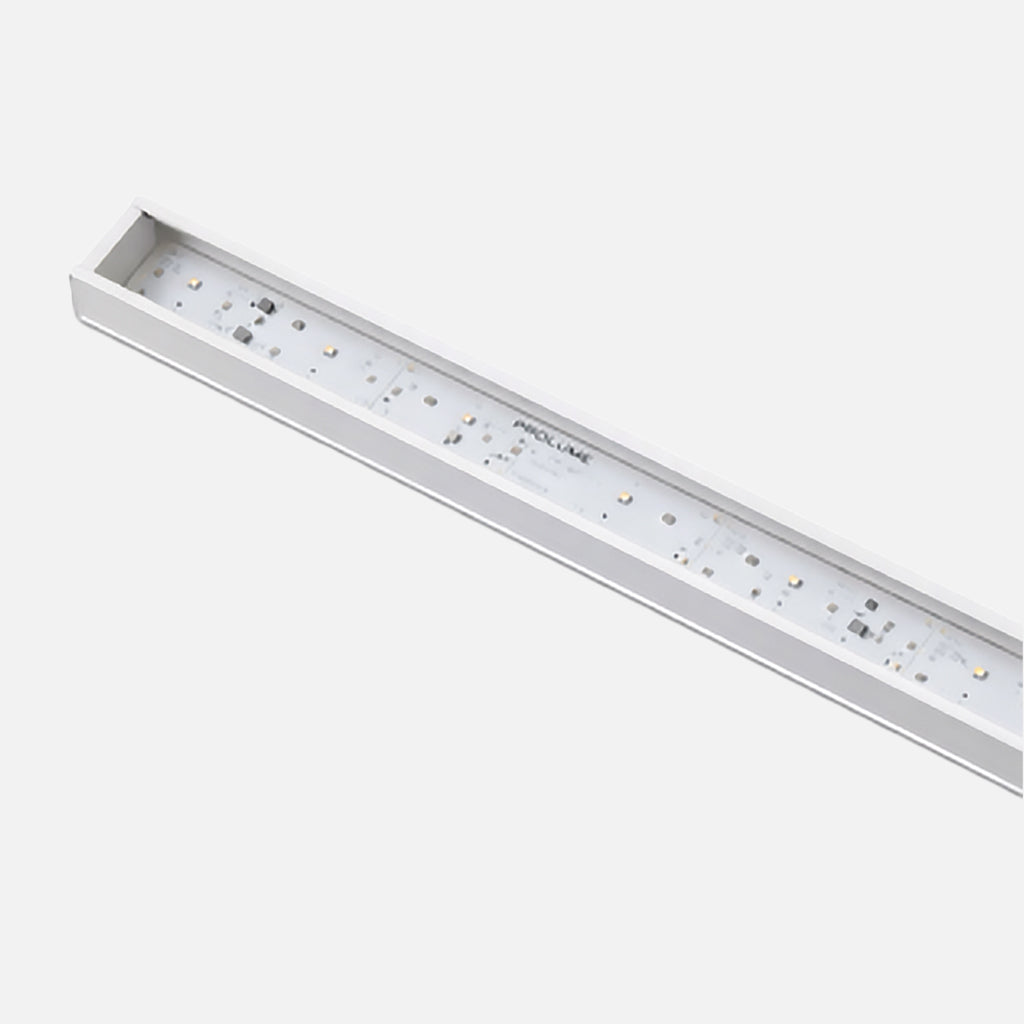

Low Profile Linear LED Fixture
LumaRail - LO is only 0.50″ tall and 1.25″ wide. Manufactured in America, it is BABAA compliant and constructed with a sturdy extruded aluminum housing. The LumaRail - LO linear LED fixture delivers superior lumen output from a very low-profile package. Produced in both standard output and high output, the LO includes onboard 0 – 10 VDC dimming and both fixed and articulating mounting options to deliver the maximum versatility for nearly any linear application.
Offered with either a clear or frosted lens option and able to serve dry environments, with a damp option available, the LO satisfies many needs for specifiers around the globe. Touting all these features, it is easy to understand why LO has been specified as the ideal solution for demanding applications that include cove, accent and task lighting.
Features
- Made in America quality and craftsmanship
- Five CCTs and four colored LED standard options
- Customizable fixture lengths, CCT and CRI available
- Powder coated, low profile aluminum extrusion for seamless integration
- Fixed and articulating mounting options
- Daisy chain fixtures for longer runs and energize from a single driver
- Multiple lens options
- Onboard 0 – 10VDC dimming circuitry
Downloads
Details
| Lumen Output | 423 to 844 |
| CRI | 80 – 90+ |
| Beam Angle | 115° |
| Lens | Clear & Frosted |
| Dimmable | Yes |
| Onboard Dimming | Yes |
| Fixture Length | 6” min to 102” max |
| Incremental Length | 1" |
| Environmental | Damp |
