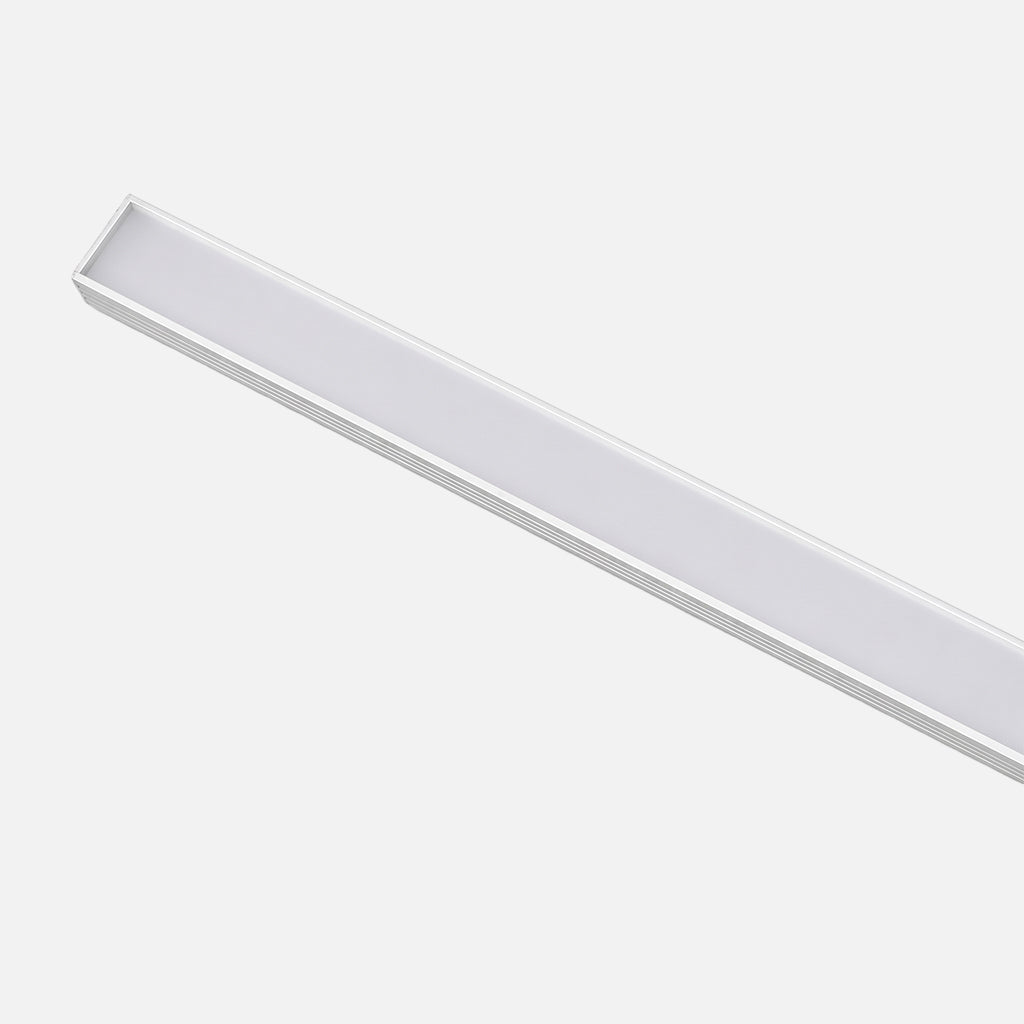

High Performance Linear LED Fixture
American designed and manufactured, the LumaBlast - UC linear light engine delivers superior lumen output. Discreetly contained within the powder coated deep channel aluminum housing, the UC linear LED light fixture easily blends into any venue. The UC is offered in a standard and high output option and can be combined with either a clear or frosted lens to deliver the desired lighting effect. For custom lengths the UC can be daisy chained and can be tailored to meet the exacting needs of nearly any specifier.
The UC is available with either a fix or articulating mount and nine standard CCT/Color options. It is the ideal solution for cove and accent lighting when a concealed source of light and excellent light throw is required.
Features
- Made in America quality and craftsmanship
- Five CCTs and four colored LED standard options
- Customizable fixture lengths, CCT and CRI available
- Powder coated, low profile aluminum extrusion for seamless integration
- Fixed and articulating mounting options
- Daisy chain fixtures for longer runs and energize from a single driver
- Multiple lens options
- Excellent light casting property
Downloads
Details
| Lumen Output | 423 to 844 |
| CRI | 80 – 90+ |
| Beam Angle | 90° |
| Lens | Clear & Frosted |
| Dimmable | Yes |
| Onboard Dimming | Yes |
| Fixture Length | 6” min to 102” max |
| Incremental Length | 1" |
| Environmental | Dry (Damp Optional) |
