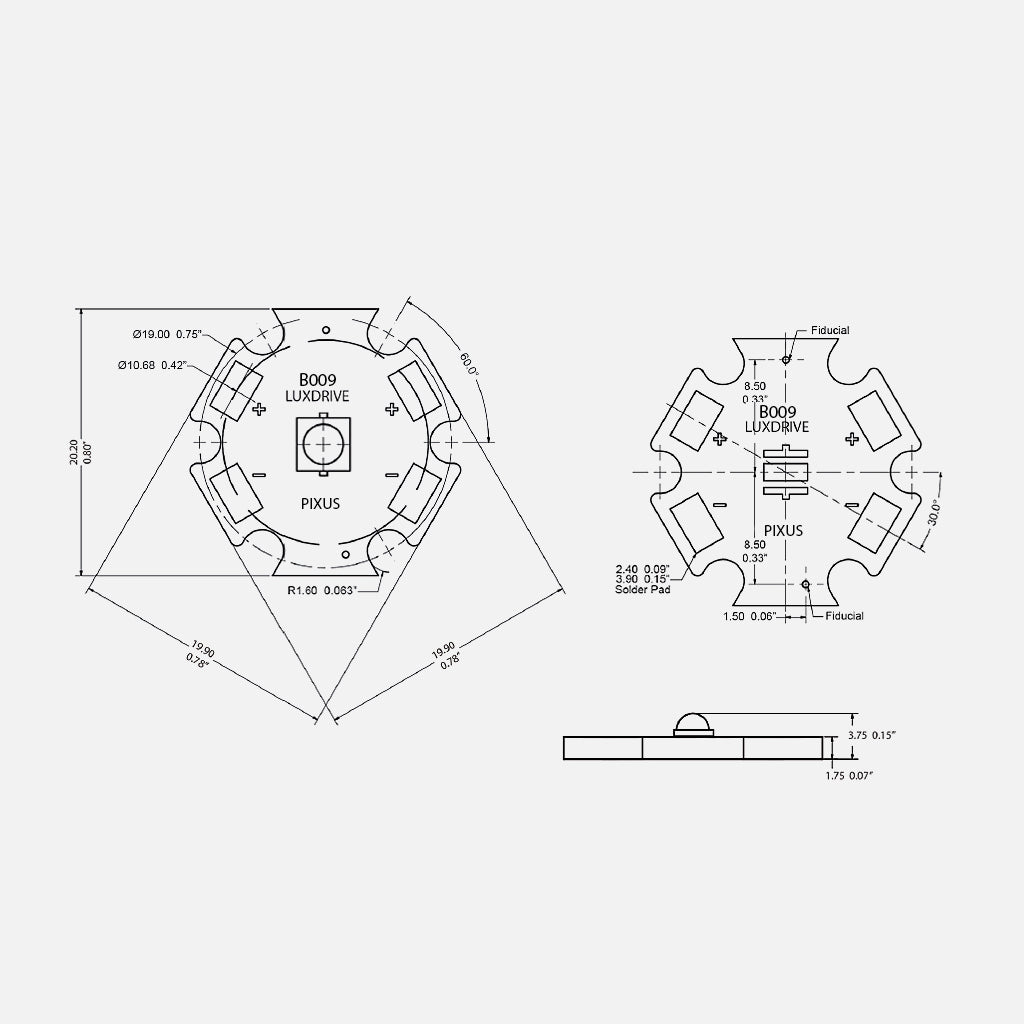

The Pixus B009 Star Board combines high brightness with ease of integration into fixtures and OEM applications. The LUXdrive™ Pixus Star features the Cree XM-L2 emitter on a 20mm star board. Inherent electrical isolation means thermal interface materials are not required to be electrically insulative. LEDdynamics strives to use the highest flux bins that are most readily available, please contact us if you require a specific bin.
Features
- 3000mA maximum drive current
- Made in America design and quality
- Available in a range of white color temperatures
- Beam sculpting optics available
Volume Discounts
| Quantity | Price |
| 10-99 | $4.49 ea. |
| 100-249 | $4.24 ea. |
| 250-499 | $4.00 ea. |
| 500+ | $3.77 ea. |
*Price reflected in cart.
Downloads
Applications
- General Illumination
- Display Case Lighting
- Sign Lighting
- Flashlights
White Product Selection Guide
| B009-CL20830T4 | 3000K | 80 | 2.771 | 331 |
| B009-CL20840T6 | 4000K | 80 | 386 | |
| B009-CL20750U3 | 5000K | 75 | 441 | |
| B009-CL20665U3 | 6500K | 65 | 441 |
1. Values specified @1050mA, Tj 85°C – for more specs, visit emitter data sheet here.
2. All specifications are subject to change without prior notification.
