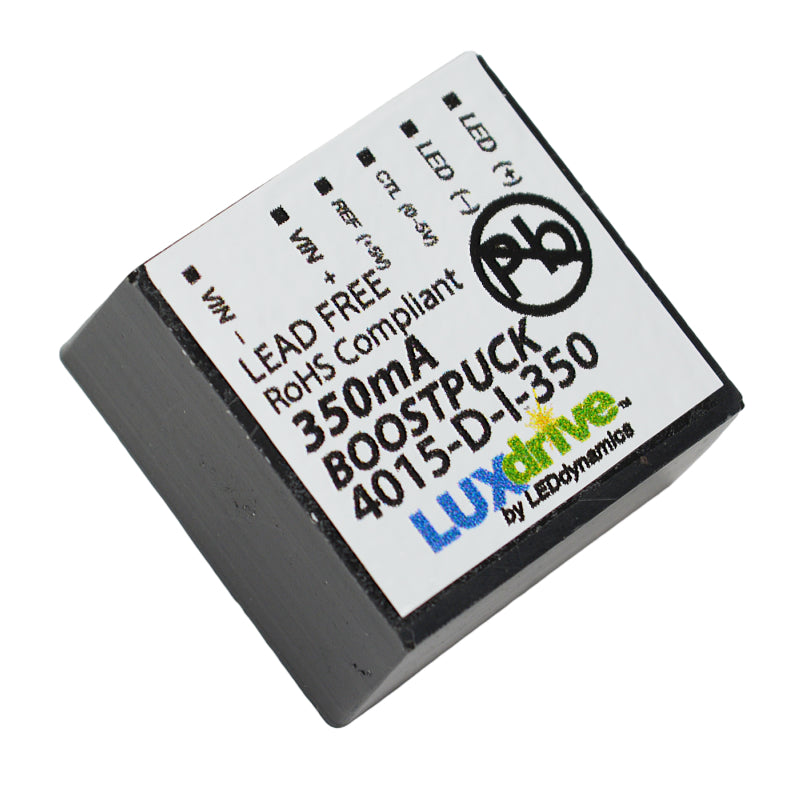

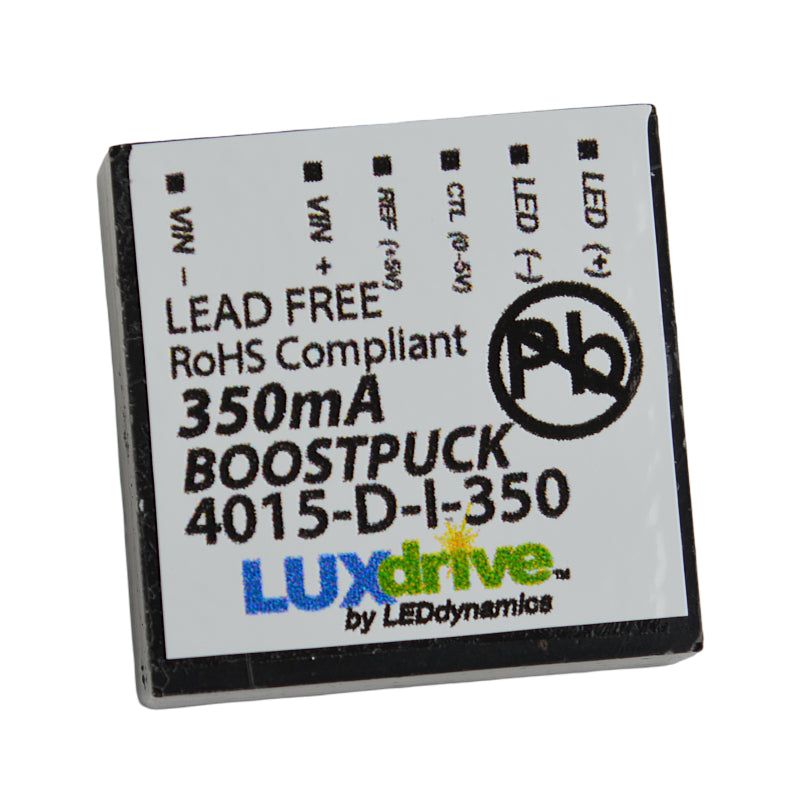

The BoostPuck 4015 DC:DC LED driver utilizes a boost topology to regulate power for LED lighting. Designed for versatility, it accepts an input voltage range of 5 to 28 VDC and delivers a fixed constant output current of 350 mA. Furthermore, this module supports precise intensity control through its 0–10V dimming capabilities.
Features
- Made in America craftsmanship and quality
- DC input voltage up to 32V
- 350mA, 500mA, 700mA, or 1.0A constant current output
- Customization of specifications available
- Optional on-board trim adjustment (40 - 110%)
- Output short circuit & open circuit protection
- Extremely small form factor (0.83”x 0.83”x 0.43”)
| Quantity | Price |
| 10-99 | $22.80 ea. |
| 100-249 | $21.60 ea. |
| 250-499 | $20.40 ea. |
| 500+ | $19.20 ea. |
*Price reflected in cart.
Downloads
Part Number Identification
| Part Number | Input Voltage | On-board Trim | Control | Connection |
|---|---|---|---|---|
| 4015-D-E-350 | 5 - 28 VDC | No | Yes | 7 Pin SIP |
| 4015-D-I-350 | Yes |
All specifications are subject to change without prior notification
Applications
- Solar Lighting
- Architectural Lighting
- Point of Purchase Lighting
- Automotive & Marine Lighting
- Flash & Strobe Lighting
- Track Lighting
- Signal & Marker Lighting
- Cabinet & Display Case
- Sign & Channel Letters
- Marine Lighting
Accessory Ordering Detail
| PART NUMBER | COMPATIBILITY | DIMMING | POTENTIOMETER | CONNECTION |
|---|---|---|---|---|
| 3021HE | 3021-A-E & I-xxx4015-D-E & I-xxx | None | None | 6 Pin Connector to 6 Wire Lead |
| 3021HEP | Dimming | Yes | 6 Pin Connector to 6 Wire Lead |
