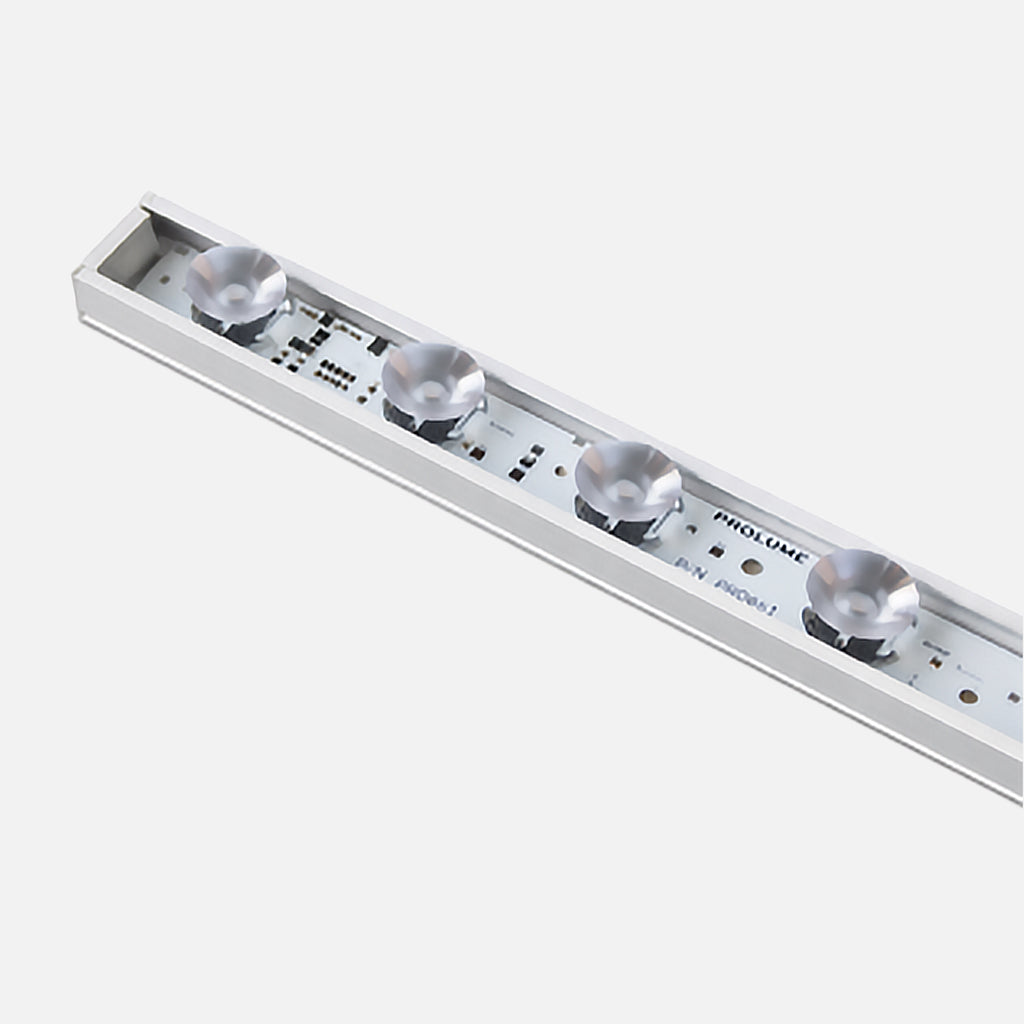

Low Profile Linear LED Fixture
Manufactured in America and constructed of a sturdy powder coated aluminum housing, the LumaRail – LOfx linear LED fixture utilizes industry leading optics to deliver superior lumen output in an attractive low-profile package. Available in both standard output and high output, the LOfx includes onboard 0 – 10 VDC dimming and can be mounted in either a fixed or articulating position to deliver the optimum desired solution for nearly any linear application.
Appropriate for dry environments, with a damp option available, the LOfx satisfies the most demanding needs for specifiers around the globe. Adding optical elements to the outstanding feature set makes it apparent why LOfx has been chosen by specifiers for low profile and broad light distribution applications repeatedly.
Features
- Made in America quality and craftsmanship
- Five CCTs and four colored LED standard options
- Customizable fixture lengths, CCT and CRI available
- Powder coated, low profile aluminum extrusion for seamless integration
- Fixed and articulating mounting options
- Daisy chain fixtures for longer runs and energize from a single driver
- Multiple bean-sculpting lens options
- Onboard 0 – 10VDC dimming circuitry
Downloads
Details
| Lumen Output | 444 to 772 |
| CRI | 80 – 90+ |
| Beam Angle | 15° | 40° | 50 x 10° |
| Lens | None |
| Dimmable | Yes |
| Onboard Dimming | Yes |
| Fixture Length | 6” min to 102” max |
| Incremental Length | 1" |
| Environmental | Dry (Damp Optional) |
