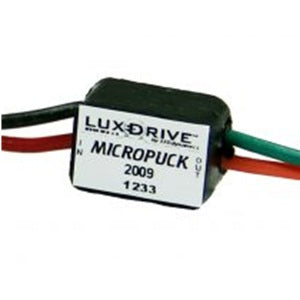

The MicroPuck 2009 DC:DC LED driver is capable of operating in Buck, Boost, or Buck-Boost topologies, allowing it to maintain regulated current regardless of whether the input voltage is higher or lower than the load. It is specifically designed for very low voltage applications, accepting a minimal input range of 0.8 to 3 VDC. The unit provides a constant current output ranging from 350 mA to 600 mA but does not feature integrated dimming capabilities.
Features
- Made in America quality and design
- Customization of specifications available
- DC input voltage up to 3V
- 350mA, 400mA or 600mA constant current output
- Epoxy encapsulated against harsh and moist environments
- Extremely small form factor (0.45”x 0.3”x 0.26”)
Volume Discounts
| Quantity | Price |
| 10-99 | $15.67 ea. |
| 100-249 | $14.84 ea. |
| 250-499 | $14.02 ea. |
| 500+ | $13.19 ea. |
*Price reflected in cart.
Downloads
Applications
- Battery Lighting Applications
- Drop-in Replacement Bulbs
- Head-Lamps / Camp Light
- Portable Lighting & Flashlight
- Pen Lights
- Solar Lighting
- Desk & Reading Lamps
- Road Markers
Ordering Detail
| Product | Input Voltage | Drive Current | Control | Connection |
|---|---|---|---|---|
| 2009 | 0.8 to 3 VDC | 350 mA | None | 4 Wire Lead |
| 2009-HI | 400 mA | |||
| 2009-SHO | 600 mA |
