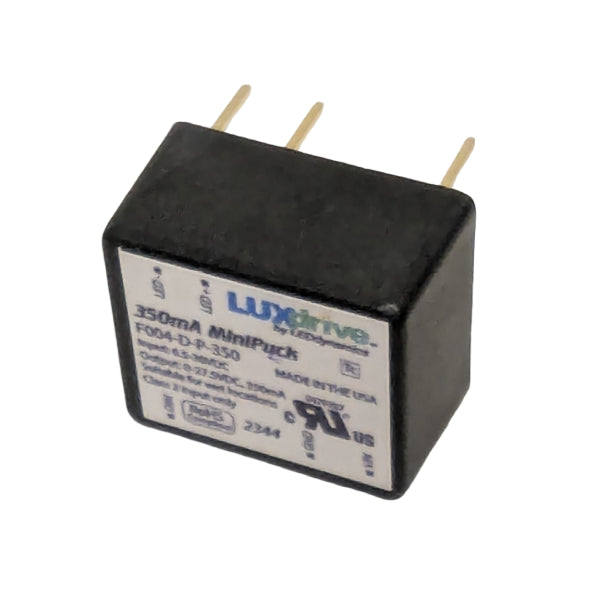

The MiniPuck F004 DC:DC LED driver utilizes a buck topology to provide regulated power for LED lighting applications. Capable of operating within an input voltage range of 6.5 to 30 VDC, it delivers a constant output current between 350 mA and 700 mA. Furthermore, this module features PWM dimming support, enabling precise control over lighting intensity.
Features
- Made in America design and quality
- DC input power up to 30V
- 350, 500 and 700mA constant current output
- Customization of specifications available
- Small 0.79”x 0.66”.0.43” mechanical envelope
- Output open circuit and over temperature protection
Volume Discounts
| Quantity | Price |
| 10-99 | $21.72 ea. |
| 100-249 | $20.57 ea. |
| 250-499 | $19.43 ea. |
| 500+ | $18.29 ea. |
*Price reflected in cart.
Downloads
Applications
- Solar Lighting
- Architectural Lighting
- Point of Purchase Lighting
- Automotive Lighting
- Flash & Strobe Lighting
Ordering Detail
| Part Number | Input Voltage | Drive Current | Control | Connection |
|---|---|---|---|---|
| F004-D-P-350 | 6.5 to 32 VDC | 350 mA | PWM | 5 Pin |
| F004-D-P-500 | 500 mA | |||
| F004-D-P-700 | 700 mA |
