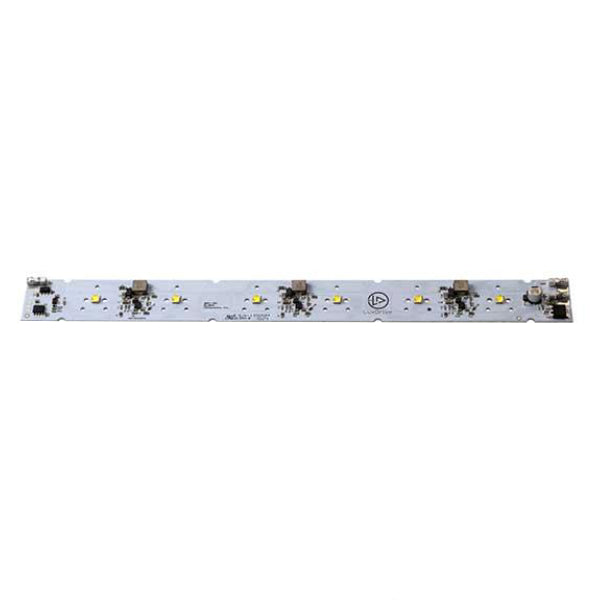

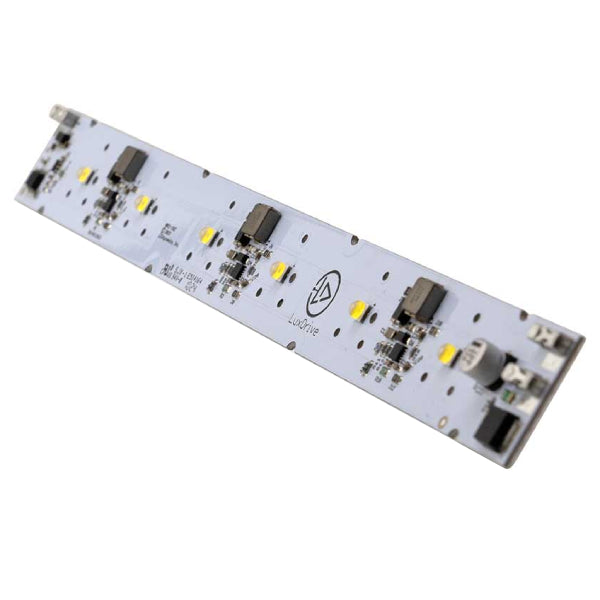

The N021 LUXBlast is a high-output linear light engine capable of delivering 7000 lumens. With its small 10-inch long footprint, it’s the ideal solution for spaces requiring ample illumination. Featuring four optional optics, the LUXBlast offers versatile solutions, from spotlights to floodlights. Equipped with built-in thermal and undervoltage protection, it safeguards both your light and power supply from unexpected conditions, ensuring damage-free operation.
Features
- 7000+ Lumens from Cree LEDs
- Optional Khatod Optics
- Built-in Thermal Protection
- Made in America design and quality
Volume Discounts
| Quantity | Discount |
| 10-99 | 5% |
| 100-249 | 10% |
| 250-499 | 15% |
| 500+ | 20% |
*Price reflected in cart.
Downloads
Specifications
| General | Lumen Oputput 1 2 | up to 7,000 lm | ||
| Efficacy | 104 lm/w | |||
| Beam Angle 3 | 120° FWHM | |||
| Electrical | Input Voltage | 11Vdc (min) | 15Vdc (max) | |
| Input Power | 67W | |||
| Input Current | 5.5A @12Vdc | |||
| Environmental | Operating Temp | -40 to 80° C | ||
| Storage Temp | -40 to 125° C | |||
| Mechanical | Connection | 18-22 AWG Poke-In | ||
| Mounting | #6 Fasteners, 8 places | |||

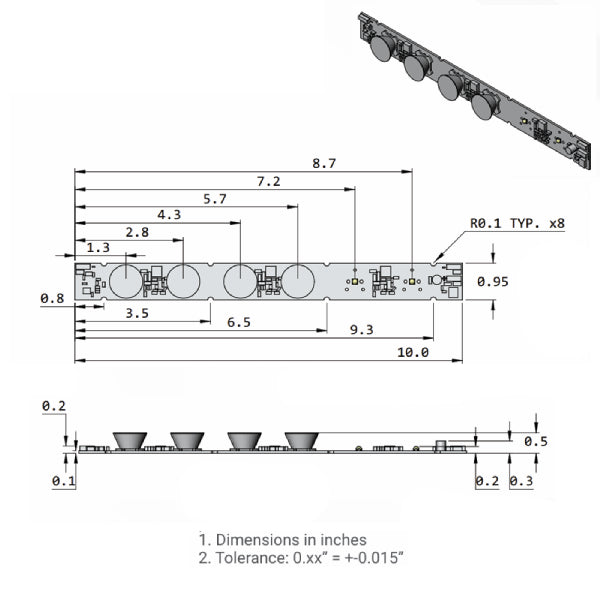

| Dimensions3 | 10” x 0.95” x 0.31” | |||
| Weight3 | 1.13 oz (32 g) | |||
| Protection | Thermal | Backoff above 80° C | ||
| Undervoltage | Backoff below 11V, off at 8.5V | |||
All specificatons subject to change without prior notification.
1 LEDdynamics reserves the right to send products of equal or greater lumen output
2 Lumen output with 5000K LED and full power
3 Without optics attached
Applications
- Architectural
- Commercial
- Residential
- Display & Accent
Accessory Ordering Information
| Part Number | Description |
|---|---|
| KO-PLL2269SAWI | 40° Wide Optic |
| KO-PLL2269SAME | 25° Medium Optic |
| KO-PLL2269SANA | 16° Narrow Optic |
| KO-PLL2269SAUN | 10° Ultra Narrow Optic |
