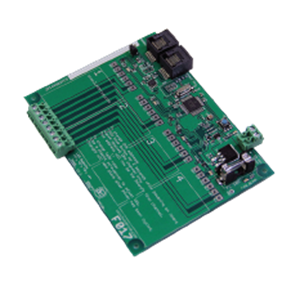

The QuadBlock F017 four-channel DMX driver interface utilizes a DC:DC buck topology to regulate power for high-current LED applications. When loaded with compatible drivers, it is designed to accept an input voltage range of 12 to 24 VDC, and delivers a flexible constant output current between 1000 and 2100 mA. Additionally, this module features PWM dimming capabilities, allowing for precise control over lighting intensity within a DMX system.
Features
- Made in America design and quality
- Simple one button DMX addressing
- One to four control channel capability
- BuckBlock A009 compatible (sold separately)
- Channel activity indicators (LED)
- USITT DMX-512/1990 Compatible
- Simple RJ45 connections for DMX
- Removable terminal blocks for power & outputs
Volume Discounts
| Quantity | Your Price |
| 10-99 | $65.82 ea. |
| 100-249 | $62.35 ea. |
| 250-499 | $58.89 ea. |
| 500+ | $55.42 ea. |
*Price reflected in cart.
Downloads
Applications
- Powering & controlling LED arrays >
- Area lighting & control systems
- Architectural lighting systems
- Theatrical & production lighting systems
- RGBW fixtures & systems
- Computer control interface
- Accent lighting control
- Landscape lighting control
Ordering Detail
| Product | Input Voltage | Channels | Compatible Driver1 | Connection |
|---|---|---|---|---|
| QuadBlock F017 | 10 to 30 VDC | 4 | BuckBlock A009 | RJ45 |
| FlexBlock A011 |
1 Compatible drivers are sold separately.
