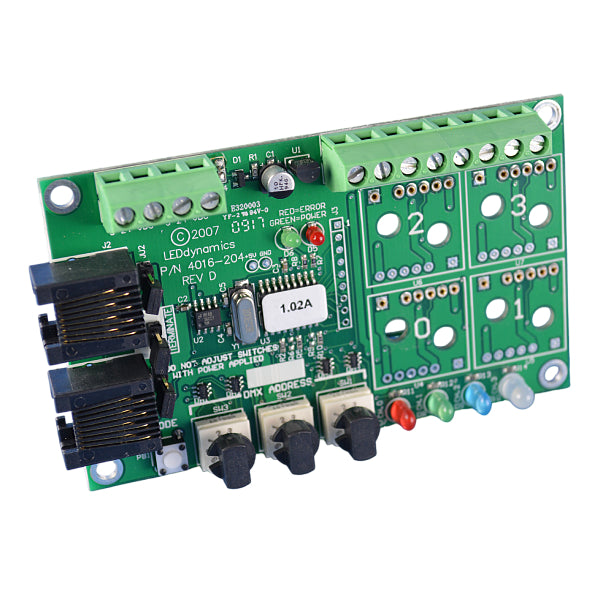

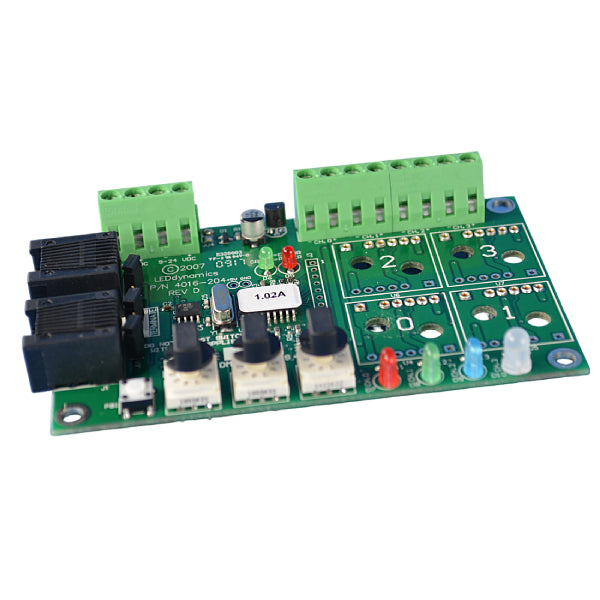

The QuadPuck 4016 is a four-channel DMX driver interface that utilizes a DC:DC buck topology to provide regulated power to LED circuits. It is designed to accept an input voltage ranging from 12 to 24 VDC and delivers a flexible constant current output between 1000 and 2100 mA. Additionally, this module supports PWM dimming, allowing for precise control over lighting intensity.
Features
- Made in America design and quality
- On-Board selected DMX addressing
- One to four control channel support
- USITT DMX/512/1990 Compatible
- Simple RJ45 connections for DMX & power
- Power-On-Self-Test and DMX transmission error indicators
- Optional terminal blocks for power & outputs
- Compact mechanical envelope (4.0” x 2.5” x 1.0”)
| Quantity | Price |
| 10-99 | $130.07 ea. |
| 100-249 | $123.23 ea. |
| 250-499 | $116.38 ea. |
| 500+ | $109.54 ea. |
*Price reflected in cart.
Downloads
Applications
- Powering & controlling LED arrays
- Area lighting & control systems
- Architectural lighting systems
- Theatrical & production lighting systems
- RGBW fixtures & systems
- Computer control interface li>
- Accent lighting control
- Landscape lighting control li>
Ordering Detail
| Product | Input Voltage | Channels | Compatible Driver1 | Connection |
|---|---|---|---|---|

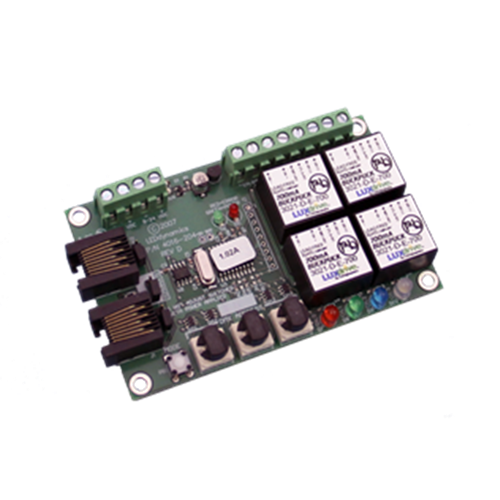

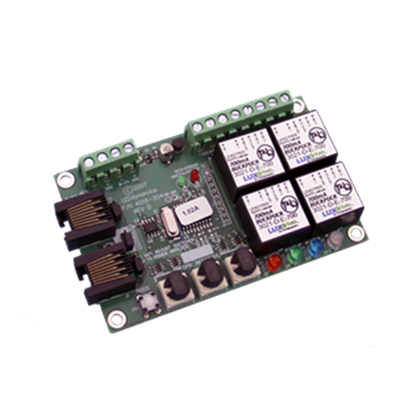

| QuadPuck 4016 | 8 to 32 VDC | 4 | BuckPuck 3021-D-E | RJ45 |
1 Compatible drivers are sold separately.
