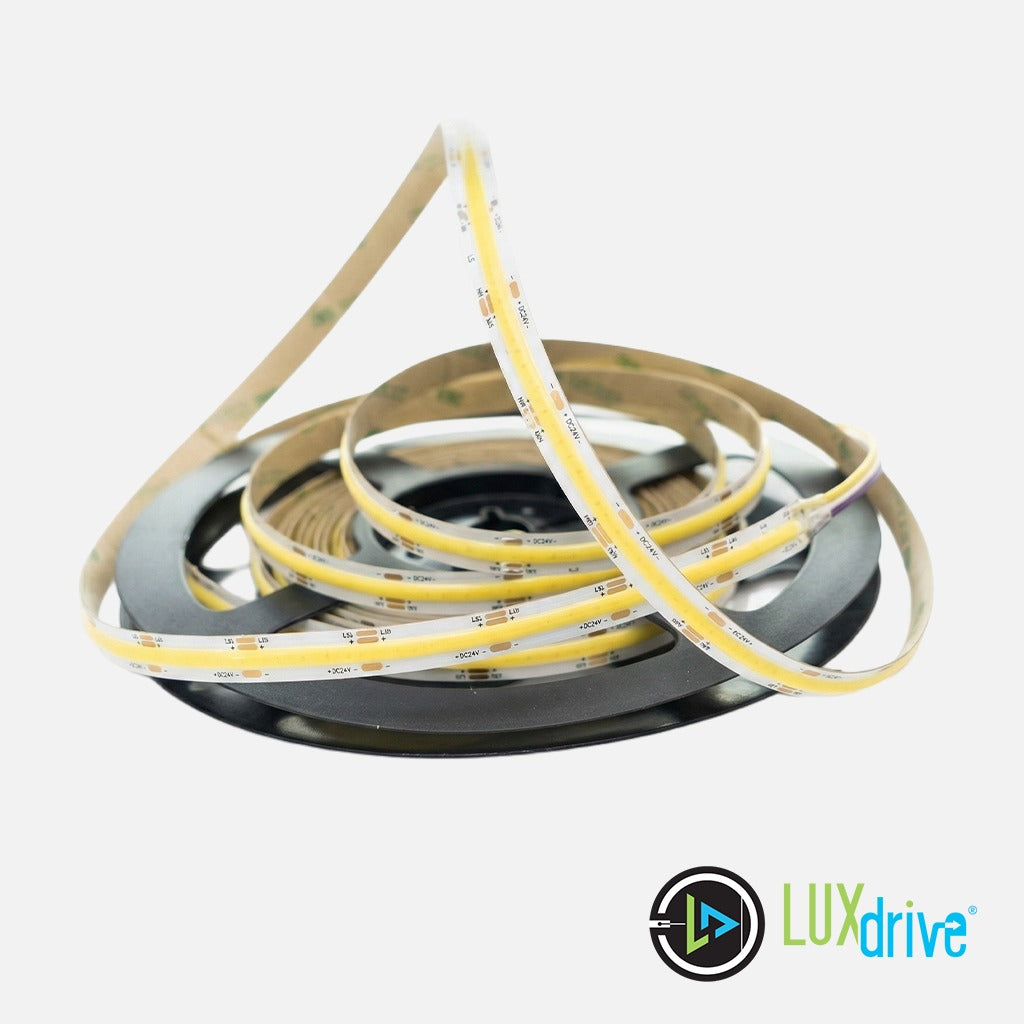

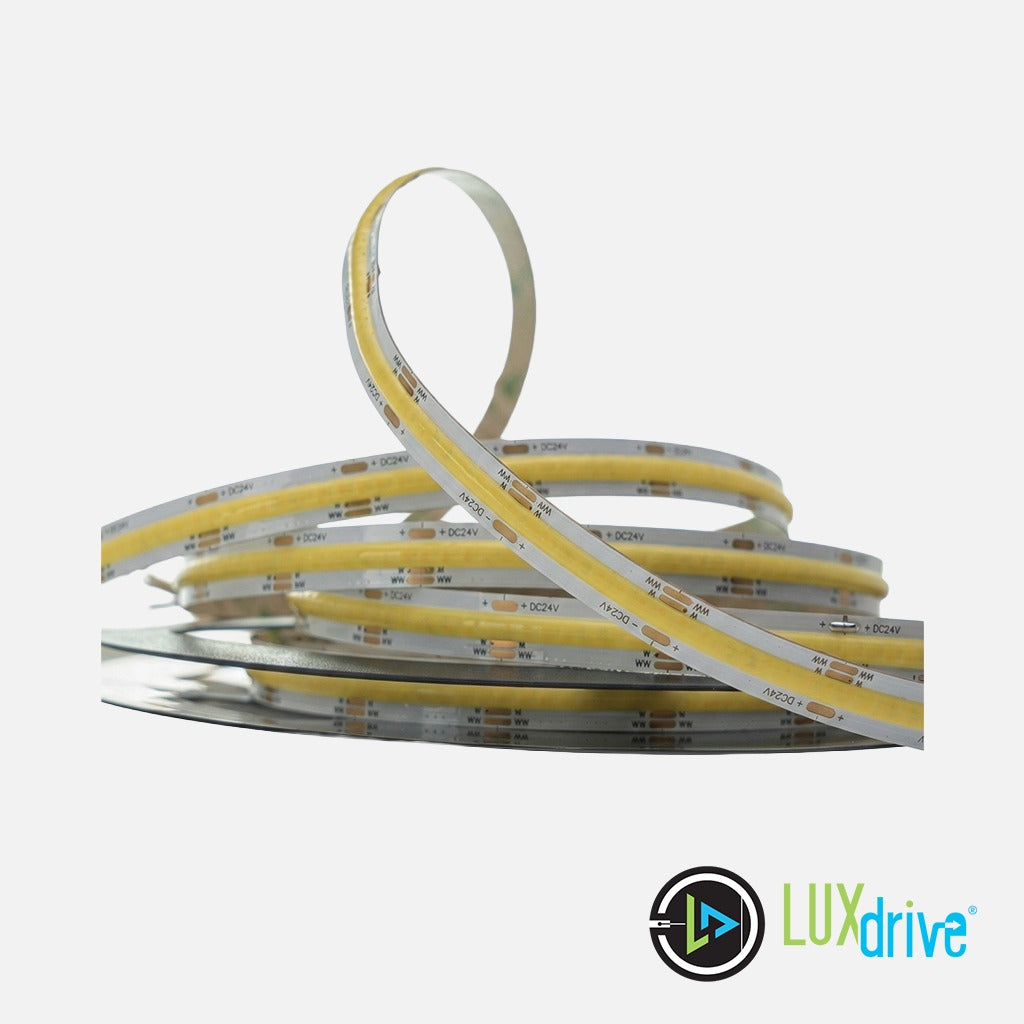

Tunable white Flextape is a top choice for interior lighting. This dynamic white LED tape gives you vibrant white options from 2700K warm white to 6500K cool white. Adjust color temperature and brightness at the tip of your finger when pairing with our tunable white controller. The tape uses a combination of white flip-chip LEDs that give off a smooth stream of light that easily transitions between cool, neutral and warm white.
The Tunable Flextape is part of our COB Flextape Series. COB tape lights create a seamless light output from start to finish. Flip chip LEDs are used to eliminate visible LED dots (hot spots) along the length of the tape. The chip-on-board technology not only improves light quality, but also improves thermal management and flexibility of the tape. The smaller LEDs can be packed tighter and weigh much less than the bulkier 5050 LEDs, creating a tape that can work around your applications needs. The spotless output makes the COB Flextape Series ideal for narrow applications like display cases and backlighting, or where reflective surfaces such as granite and tile are used.
Features
- Adjustable white color temperature
- DC Power - 24V
- Smooth output, no spots!
- Lengths: 3 Ft. - 16.4 Ft.
Details
| Adjustable Color Temperature (CCT): 2700K Warm White to 6500K Cool White | LED Density: 608 LEDs / M |
| Lumen Output: 1080-1248 Lm/M | Input Power: 24VDC |
| Wattage: 12.5 Watts/M (see wattage table below) | Mounting: Doubled-Sided 3M Tape, or Clips |
| Cuttable: Every 1.04" | Custom Lengths: Sold in 3-Foot Increments up to 5M (16.4ft) |
| Dynamic Tunable Lighting: Control with tunable white controller (sold separately) | 3-Wire Connection: Common (+), CW and WW |
High Output, Tunable White
Tunable White COB Flextape holds 608 LEDs per Meter on a 10mm wide flexible pcb. The strips are capable of outputting 1080-1248 Lumens/M of smooth continuous light emitting at 180 degrees. The wide viewing angle and continuous stream of light makes this a serious upgrade from the flexible tape lights you are used to.
Tunable White Technology
By using alternating LED chips of different color temperatures, this tape combined with a tunable white controller can smoothly change the color temperature of the tape to anywhere within the 2700K-6500K range.
The power to change color temperature (CCT) of your tape lets you easily change the ambience of your space in seconds. A cooler white may be needed when you are needing light for a certain task, whereas warm white will be much more suitable when winding down for the evening. The choice is yours with tunable white LEDs!
Custom Lengths

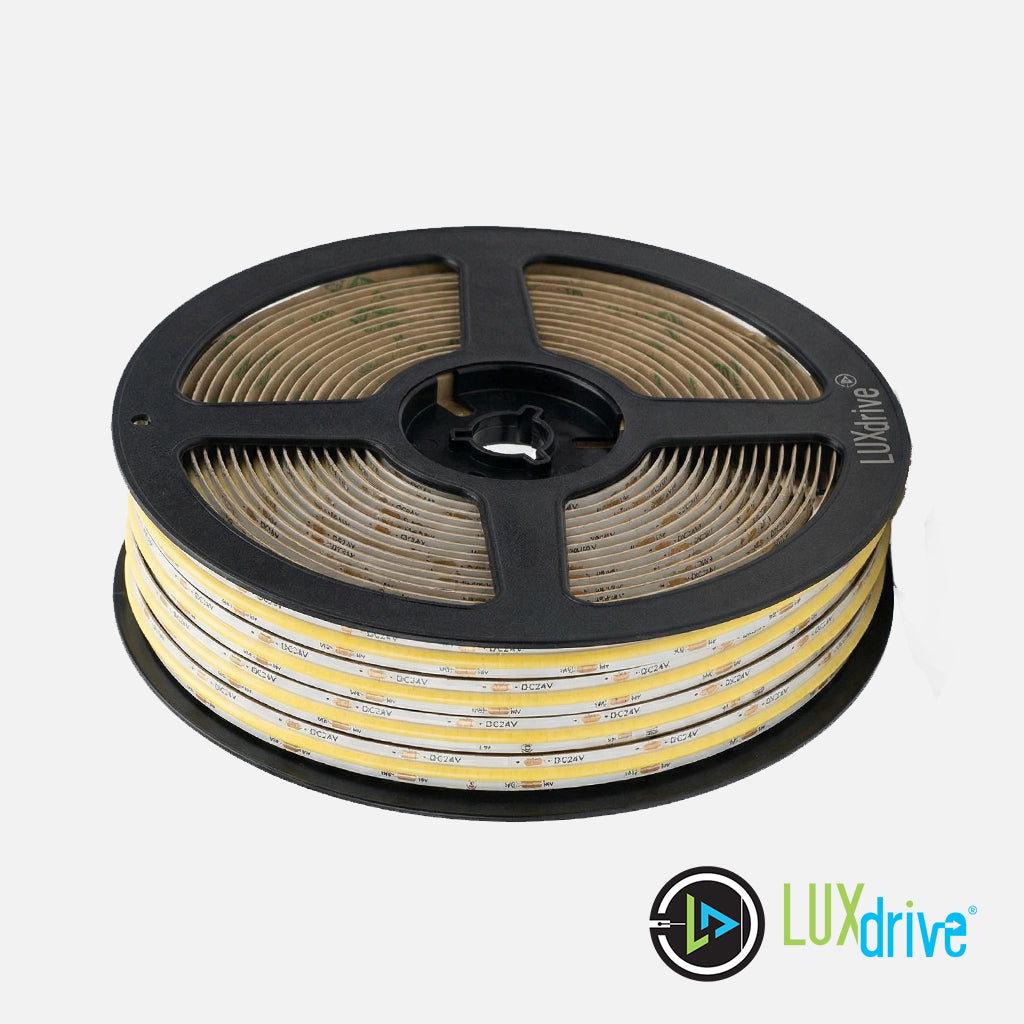

Unlike most suppliers, we offer LED strip lights in smaller 3-foot increments up to 16.4 feet long (1 Reel = 5M). Some applications might need a shorter section of strips which is why the LED strips can be cut. You can cut the strip along the cut marks which feature a thin black line running over solder pads every 1.04 inches. Max Run Length = 2 full reels - 32.8ft.
End-to-End Connections
When there is a break in your application you can still run one strip to another using 20-24 gauge wire. TAKE NOTE: COB LED Strips maximum run length is 32.8 feet (2 reels). After the maximum run length the voltage drop becomes too great and you will lose light and efficiency from your system. If your application needs more than the maximum run length you will have to get another power supply or run wire from the extra strip directly back to the first power supply (wiring in parallel).
Power
The strips need 24VDC input. This requires either a battery or 24V Power Supply. The strips run at roughly 12.5 Watts/M. Please make sure you have enough wattage when running your specified length.
Detailed Wattage Table for 24V Tunable White LED Flextape
| LENGTH | WATTAGE | |
| Feet (Ft) | Meters (M) | COB Strip Wattage (W) |
| 1 | 0.3048 | 5.1 |
| 2 | 0.6096 | 8.7 |
| 3 | 0.9144 | 12.5 |
| 6 | 1.8288 | 22.6 |
| 9 | 2.7432 | 30.7 |
| 12 | 3.6576 | 36.8 |
| 16.4 (Full Roll) | 5 (Full Roll) | 42.3 |
