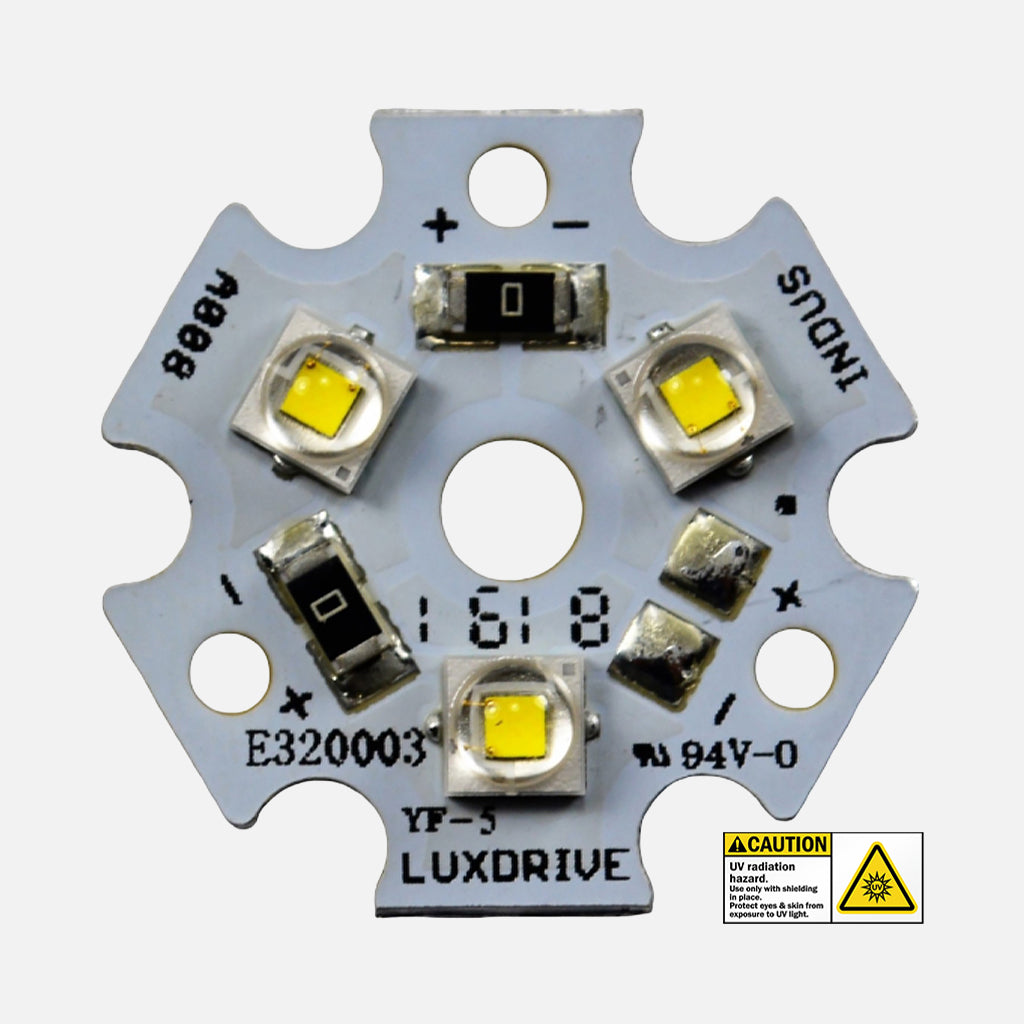

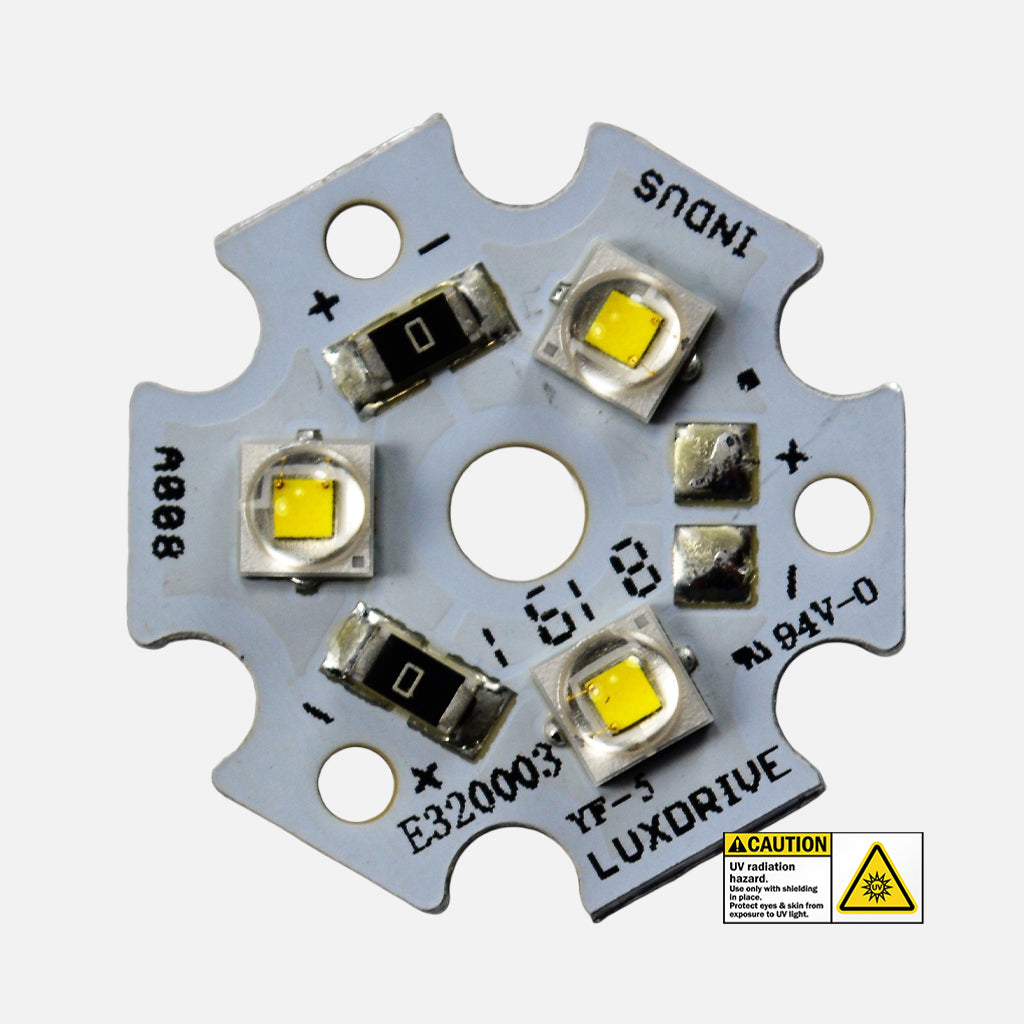

LUXdrive™ K017 UV-C LED light modules are ideal for a variety of applications including surface sterilization, water disinfection, and air purification. UV-C LEDs Seoul are mounted on our industry standard 20mm, aluminum base metal core printed circuit board (MCPCB). Inherent electrical isolation means thermal interface materials are not required to be electrically insulative. Please take necessary precautions when working with UV-C LEDs. The wavelengths emitted are very dangerous to the eyes and skin.
Features
- Made in America design and quality
- Customization of specifications available
- High-output & long lifetime
- Reliable Brands (Nichia/Seoul/Stanley)
Volume Discounts
| Quantity | Price |
| 10-99 | $59.34 ea. |
| 100-249 | $56.21 ea. |
| 250-499 | $53.10 ea |
| 500+ | $49.97 ea. |
*Price reflected in cart.
Downloads
Applications
- Sterilization
- Air Purification
- Water Disinfection
- Research
Specifications
| CA3535 CUD7GF1B Seoul Viosys | Part Number | Peak Wavelength | Typ. Flux (mW) | Forward Voltage @100mA |
|---|---|---|---|---|
| 1-Up 20mm Star | A007-EGBF27508 | 275nm | 11 | 5.6 |
1. Values specified @100mA, Tj 25°C
2. All specifications are subject to change without prior notification.
Maximum Ratings
| LED | DC Current (mA) | Typ. Viewing Angle< | Thermal Resistance (°C/W)* |
|---|---|---|---|
| Stanley | 500 | 120° | 7.5° |
| Nichia | 1050 | 120° | 9.4° |
| Seoul Viosys | 250 | 125° | 1-up: 32° | 3-up: 11.33° |
*LED junction to bottom of starboard (MCPCB), measured in °C/W
