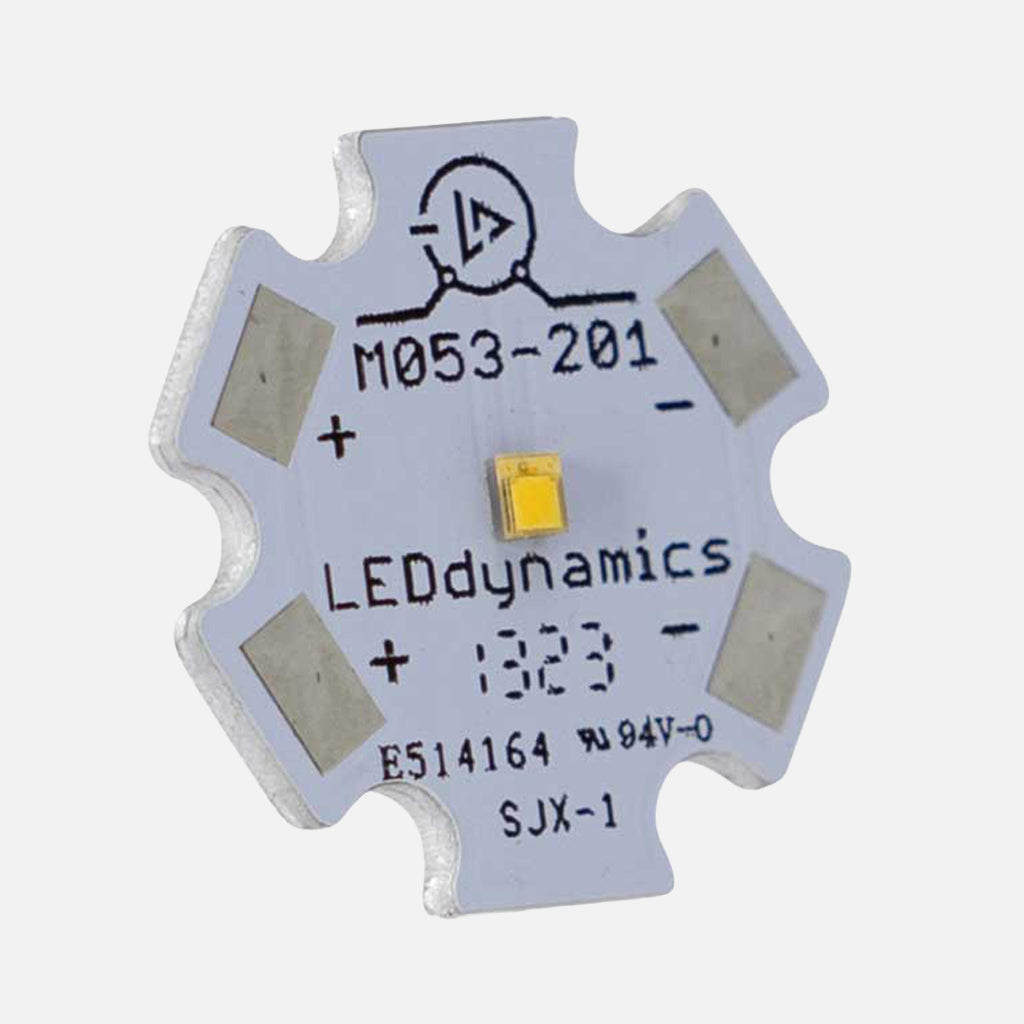

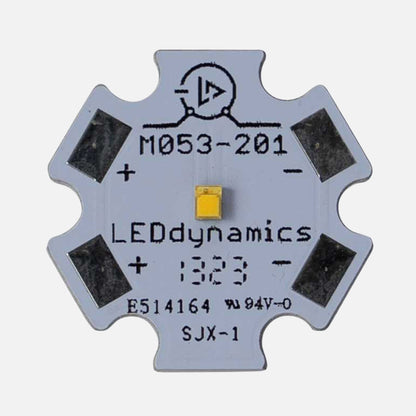

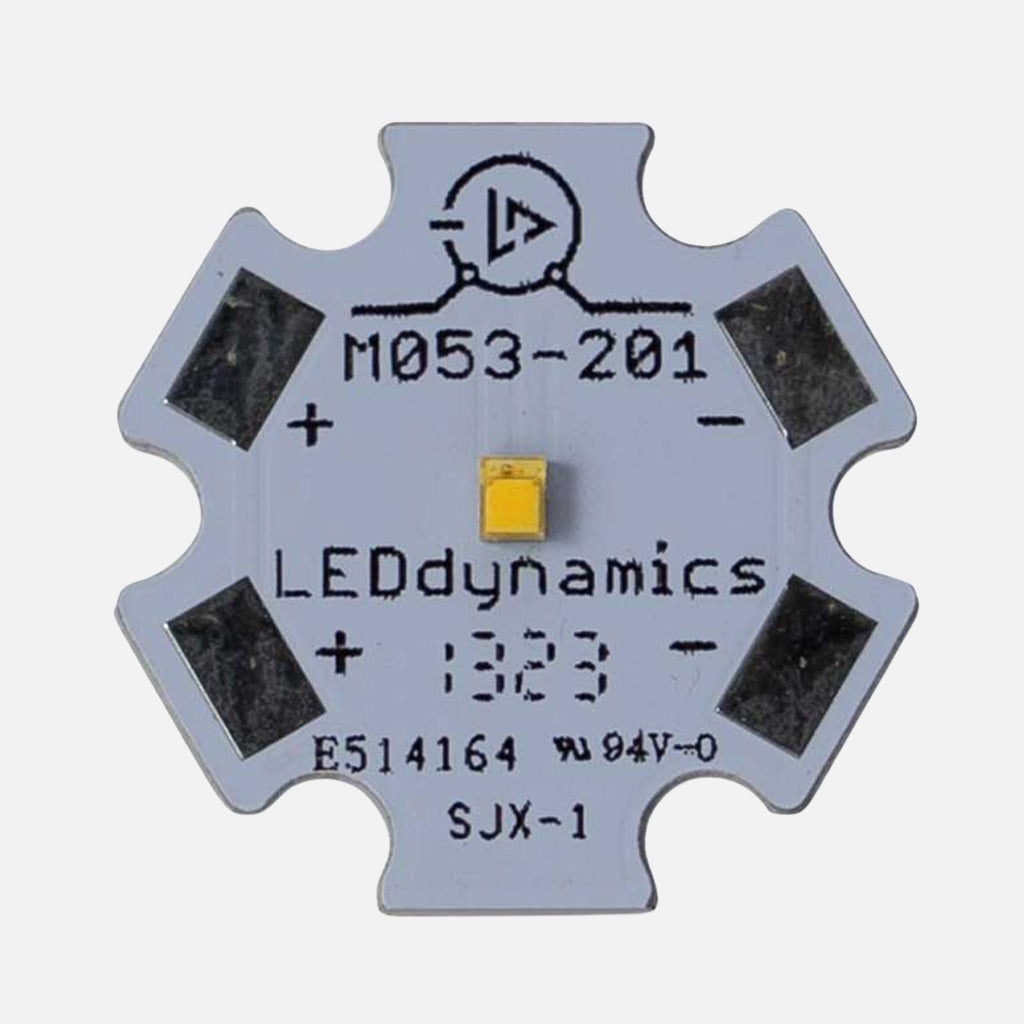

The Pulsar M053 integrates XLamp® Element G (XE-G) LEDs onto a 20mm 1-up metal core star board configuration for seamless fixture and OEM application integration. These advanced LEDs offer unrivaled light output and precise spectral control with 17 diverse colors and versatile white choices, empowering lighting manufacturers to optimize light output characteristics. The built-in electrical isolation eliminates the need for insulative thermal interface materials. LEDdynamics prioritizes excellence by selecting the highest available flux bins. For specific bin requirements, our team is ready to assist. Elevate your lighting projects with the synergy of XLamp® Element G LEDs and LUXdrive™ Pulsar Star – where innovation meets simplicity.
Features
- Up to 3000mA (3A) drive current
- 17 different color palette
- SC3 Silicone Carbide Technology from Cree
- Pair with Carlco secondary lenses
Volume Discounts
| Quantity | Discount |
| 10-99 | 5% |
| 100-249 | 10% |
| 250-499 | 15% |
| 500+ | 20%/td> |
*Price reflected in cart.
Downloads
Applications
- Directional
- Architectural
- Entertainment
- Automotive
White Product Selection Guide
| Part Number | 3-Step Order Code | Group | CCT | CRI | Voltage (Vf) |
Lumens @1000mA 25°C |
|---|---|---|---|---|---|---|
| M053-CEG0827T4 | XEGAWT-H0HT427G | 27G | 2700K | 80 | 3.0 | 263 |
| M053-CEG0830T5 | XEGAWT-H0HT530G | 30G | 3000K | 80 | 280 | |
| M053-CEG0840T6 | XEGAWT-H0HT640G | 40G | 4000K | 80 | 307 | |
| M053-CEG0850U2 | XEGAWT-H0HU250G | 50G | 5000K | 80 | 329 |
Color Product Selection Guide
| Part Number | Cree Order Code | Color | Wavelength (NM) | Voltage (Vf) |
Lumens @1000mA 25°C |
|---|---|---|---|---|---|
| M053-CGABLU | P3002 | Blue | 465-485 | 3.05 | 73.9 |
| M053-CGACYN | S5001 | Cyan | 490-510 | 172 | |
| M053-CGAGR | U3001 | Green | 520-535 | 320 | |
| M053-CGAPCY | U6001 | PC Yellow | PYO | 380 | |
| M053-CGAPCA | T3001 | PC Amber | Y20 | 220 | |
| M053-CGAPCR | M2001 | PC Red | PRO | 39.8 |
